Accuracy 0.05 Three Phase Meter Test Bench 48 Position For CT / PT LTPT 120A

Accuracy 0.05 Three Phase Meter Test Bench 48 Position For CT / PT LTPT 120A

Brand Name : KRE
Model Number : KE8301F
Certification : ISO9000
Place of Origin : China
MOQ : 1 piece
Payment Terms : Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability : 50 pieces per month
Delivery Time : 30 days
Packaging Details : Plywood case
Current range : 1mA - 120A
Warranty : 12 months
Accuracy : 0.05
Structure type : Separated type
Voltage output : 24V - 300V
meter test type : CT/PT meter, 3P3W, 3P4W
Meter position : 48
Standard : IEC 60736
Contact Now

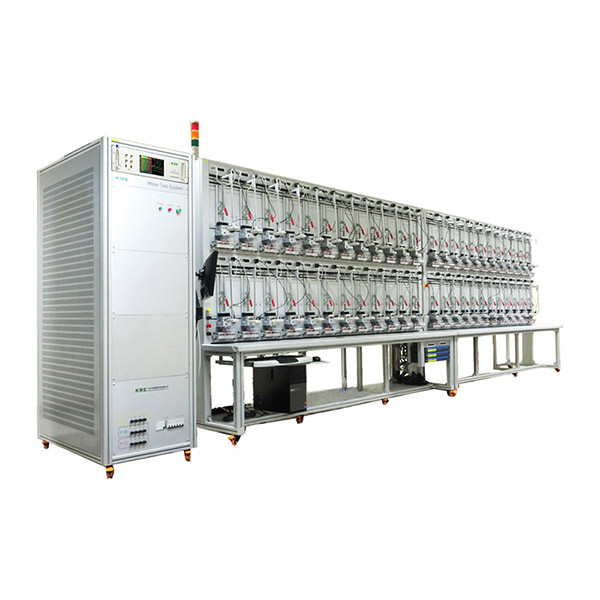

KE8301F Three Phase Meter Test Bench


Accuracy : 0.05 , it is used for the test of three phase CT/PT meter with a accuracy class below 0.2, and can test single phase meter if adding an isolation voltage transformer.


Features:

  1. Meter positions can be chosen from 3 - 48
  2. Integrated / separated aluminum alloy structure, light and reliable, flexible choices
  3. Auto protection of short circuit of voltage, open circuit of current, and overload.
  4. Test of neutral current (optional)
  5. Full automatic, semi automatic and manual operation available
  6. Adopt multi-serial port system, realizing the parallel communication of computer and the tested meters( optional)
  7. Test of tilt impact (optional)
  8. Forward and reverse active energy / forward and reverse reactive energy error test
  9. Creeping and starting test
  10. Standard deviation, 24 hour variation test
  11. Timing error test
  12. Influencing quantity test of voltage, frequency, harmonic
  13. Calibration and verification of constant
  14. Register indicating value, register combination error test
  15. Perfect database management makes the storage, searching, and viewing of the data possible, and the data can be converted and exported in other forms

Main Specification:


KE8301-6KE8301-12KE8301-24KE8301-48
Number of meter position6122448
Accuracy± 0.05%
Voltage output
Output range (P-N)3×(24V – 300V)
Output power of voltage3×100VA3×250VA3×500VA3×1000VA
ResolutionBetter than ± 0.01%
StabilityBetter than ± 0.02% / 150s
Load regulation rateBetter than ± 0.01%
Distortion factorBetter than ± 0.3% (linear resistance load)
Harmonics output2nd -21st free programmable
Current output
Output range1mA – 120A (or customized,Max. 230A)3×(1mA – 120A)
Output power of current3×150VA3×350VA3×750VA3×1500VA
ResolutionBetter than ± 0.01%
StabilityBetter than ± 0.02% / 150s
Load regulation rateBetter than ± 0.01%
Distortion factorBetter than ± 0.3% (linear resistance load)
Harmonics output2nd -21st free programmable
Phase output
Output range0 -- 360°
Resolution± 0.01°
Frequency output
Output range45Hz – 65Hz
Resolution± 0.01Hz
Operation conditions
Power supply3×220/380V±10% ,50/60Hz±2Hz
Temperature-10°C -- +40°C
Humidity35% -- 85%RH
