1ph Electrical Lab Testing Equipment , Energy Meter Calibration Equipment

1ph Electrical Lab Testing Equipment , Energy Meter Calibration Equipment

Brand Name : KRE
Model Number : KE8102
Certification : ISO9000
Place of Origin : China
MOQ : 1 piece
Payment Terms : Western Union, L/C, T/T, D/P, D/A, MoneyGram
Supply Ability : 50 pieces per month
Delivery Time : 30 days
Packaging Details : Plywood case
Phase : Single
Voltage output : 24V - 300V
Usage : energy meter calibration
Current range : 1mA - 120A
Warranty : 12 months
Accuracy : 0.05
Contact Now

1ph Electric Meter Test Equipment multiple current channels class 0.05 120A


KE8102 single phase meter test bench


KE8102 has multiple switchable channels for current output, used for testing single phase mechanical and electric meter that have 2 or 3 elements, Number of meter position : 3-64


Features:


· Integrated / Separated aluminum alloy structure, lightand reliable, flexible choices

· The numberof meter positions can be chosen from 3 - 64

· Perfect alarming protective function, auto protection ofthe short circuit of voltage, the opencircuit of current, and overload.

· Full automatic, semi automatic and manual operationavailable

· Supporting bar code input, which increase the efficiencyof input

· Simultaneous test of the energy meters with same specification, different constant and different class.

· Auto mark locking increases the efficiency of test

· Forward and reverse active energy / forward and reversereactive energy error test

· Creeping and starting test

· Standard deviation, 24 hour variation test

· Influencing quantity test of voltage, frequency, harmonic

· Calibration and verification of energy constant

· Powerful computer management system, easy anduser-friendly

· Perfect database management makes the storage, searching,and viewing of the data possible, and the data can be converted and exported inother forms

· The testof open circuit for Neutral voltage (optional)

· Adopt multi-serial port system, realizing the parallelcommunication of computer andthe tested meters (optional)


Main Specification:


KE8102-48

Number of meter position

48

Accuracy

±0.05%

Voltage output

Output range (P-N)

24V - 300V

Output power of voltage

1000VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Current output

Output range

1mA - 120A

Output power of current

2000VA

Resolution

Better than ± 0.01%

Stability

Better than ± 0.02% / 150s

Load regulation rate

Better than ± 0.01%

Distortion factor

Better than ± 0.3% (linear resistance load)

Harmonics output

2nd -21st free programmable

Phase output

Output range

0 -- 360°

Resolution

± 0.01°

Frequency

Output range

45Hz - 65Hz

Resolution

± 0.01Hz

Operation condition

Power supply

220V±10%,50/60Hz±2Hz

Temperature

-10°C -- +40°C

Humidity

35% -- 85%RH

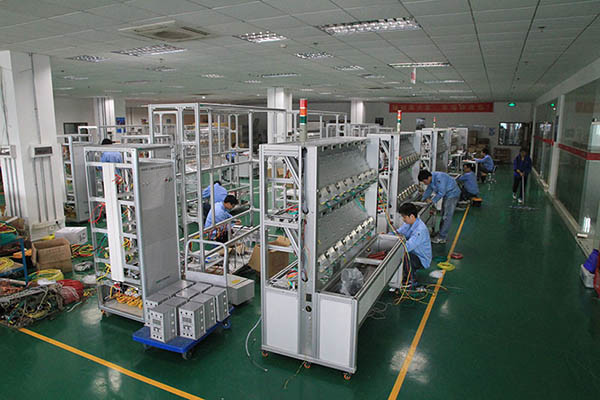

Production area
